Metrics

Expose Restate Server Prometheus metrics.

Restate servers expose operational metrics in Prometheus exposition format via the NodeCtl(port 5122) endpoint, i.e. localhost:5122/metrics. For instance, configure Prometheus to scrape this endpoint every 30 seconds by adding this section to Prometheus configuration (assuming Restate server’s IP address is 10.10.10.1 and accessible by Prometheus:

scrape_configs:
- job_name: restate_server_1
  metrics_path: "/metrics"
  static_configs:
  - targets:
    - 10.10.10.1:5122

Note that some metrics are dependent on the value of rocksdb-statistics-level in the configuration file. In most cases, the default value will be sufficient for production deployment monitoring.

Grafana Dashboards

Restate provides two pre-built Grafana dashboards for monitoring your cluster. You can import them directly from Grafana.com:

Dashboard	Grafana ID	Description
Restate: Overview	24747	High-level cluster health, resources, and throughput
Restate: Internals	24748	Deep-dive into Bifrost, Invoker, RocksDB, and more

To import a dashboard:

1. Open Grafana and go to Dashboards > Import
2. Enter the dashboard ID (24747 or 24748) and click Load
3. Select your Prometheus datasource
4. Click Import

Import both dashboards to enable navigation links between them.

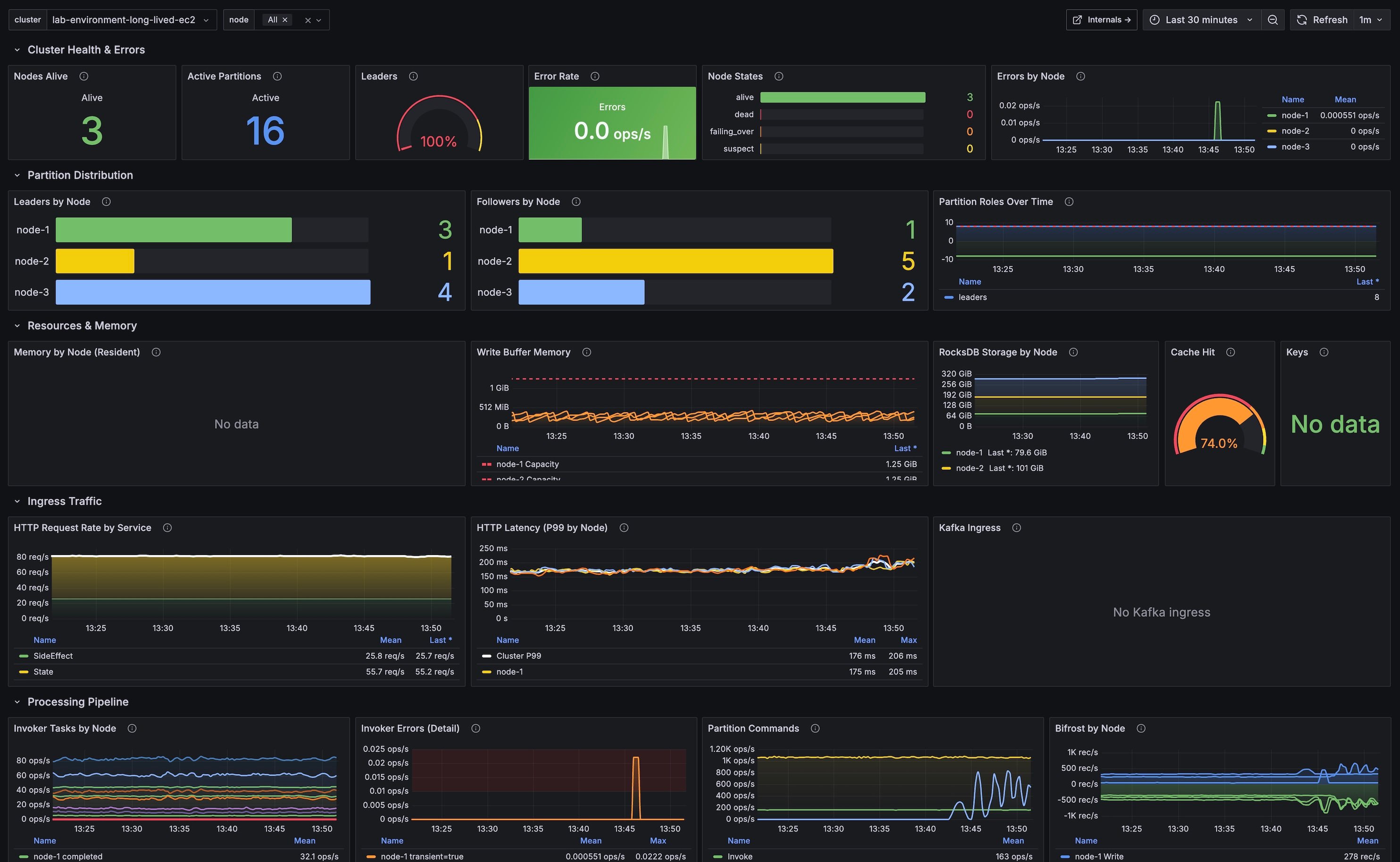

Overview Dashboard

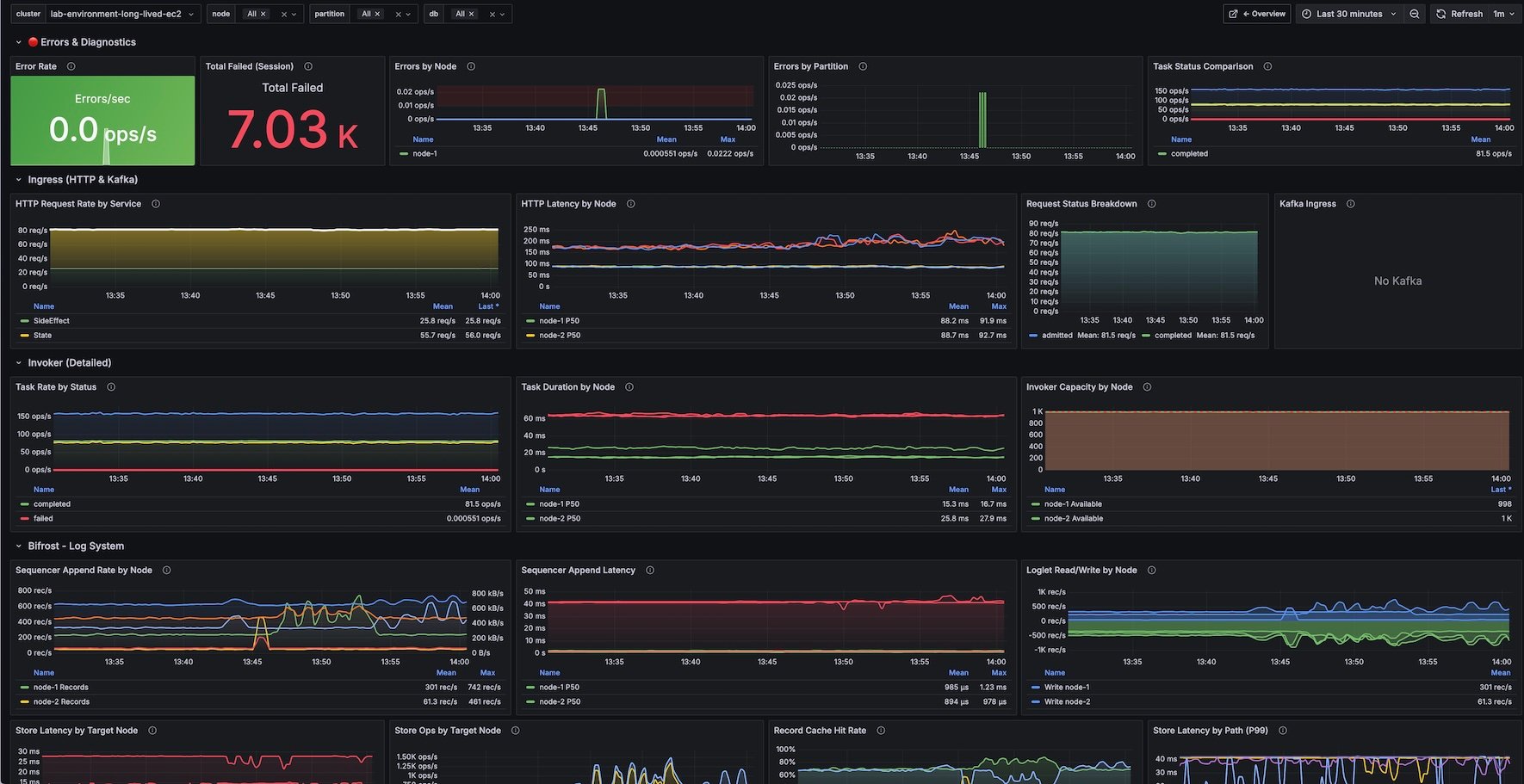

Internals Dashboard

Example Metrics

This is a non-exhaustive list of metrics that can be used to measure system performance:

• restate_ingress_requests_total (counter) - Number of ingress requests in different states (admitted, completed, throttled, etc.)
• restate_ingress_request_duration_seconds (summary) - Total latency of Ingress request processing in seconds
• restate_rocksdb_estimate_live_data_size_bytes (Gauge) - Size of the live data in RocksDb databases in bytes
• restate_invoker_invocation_task_total (counter) - The number of invocation tasks to user handlers

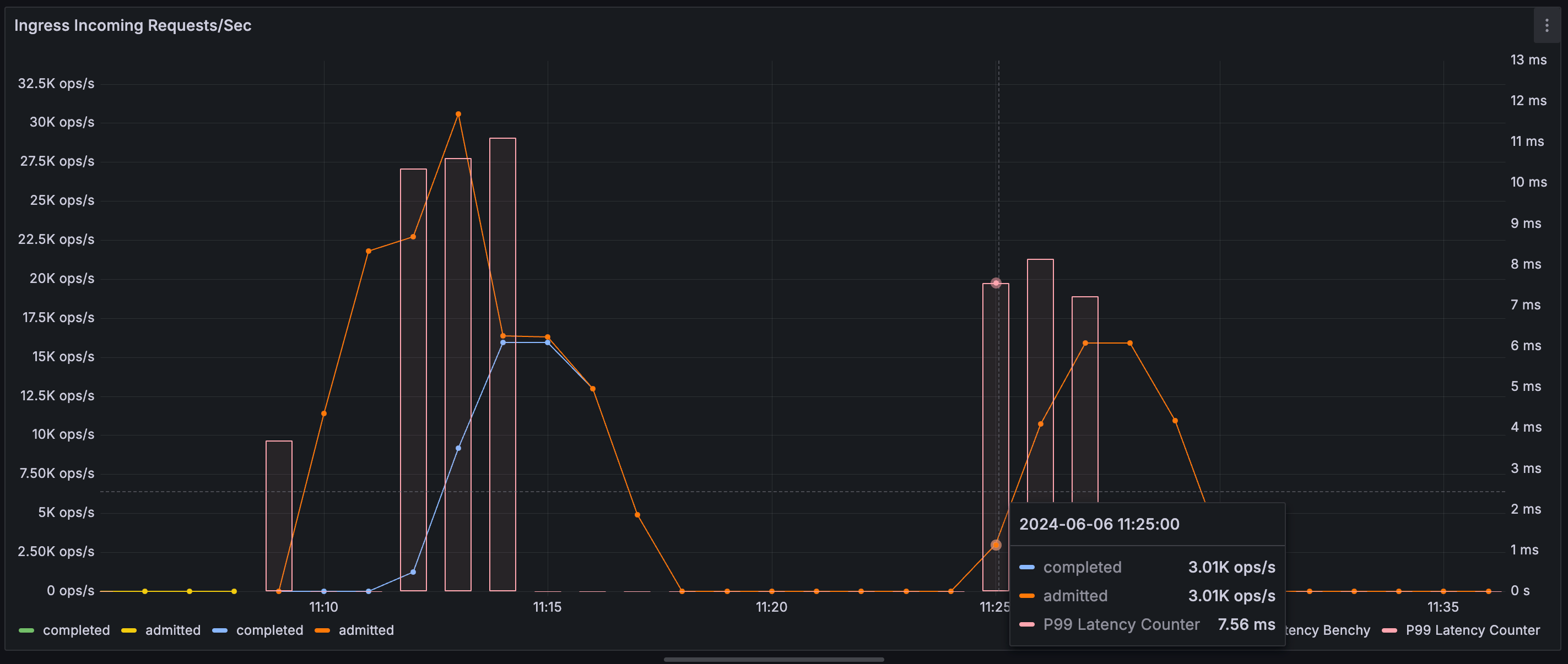

For example, we can use the following Prometheus queries to visualize throughput (ops/s) of HTTP ingress requests with an overlay of P99 latency:

rate(restate_ingress_requests_total{cluster_name="localcluster"}[$__rate_interval])

restate_ingress_request_duration_seconds{cluster_name="localcluster", quantile="0.99"}
